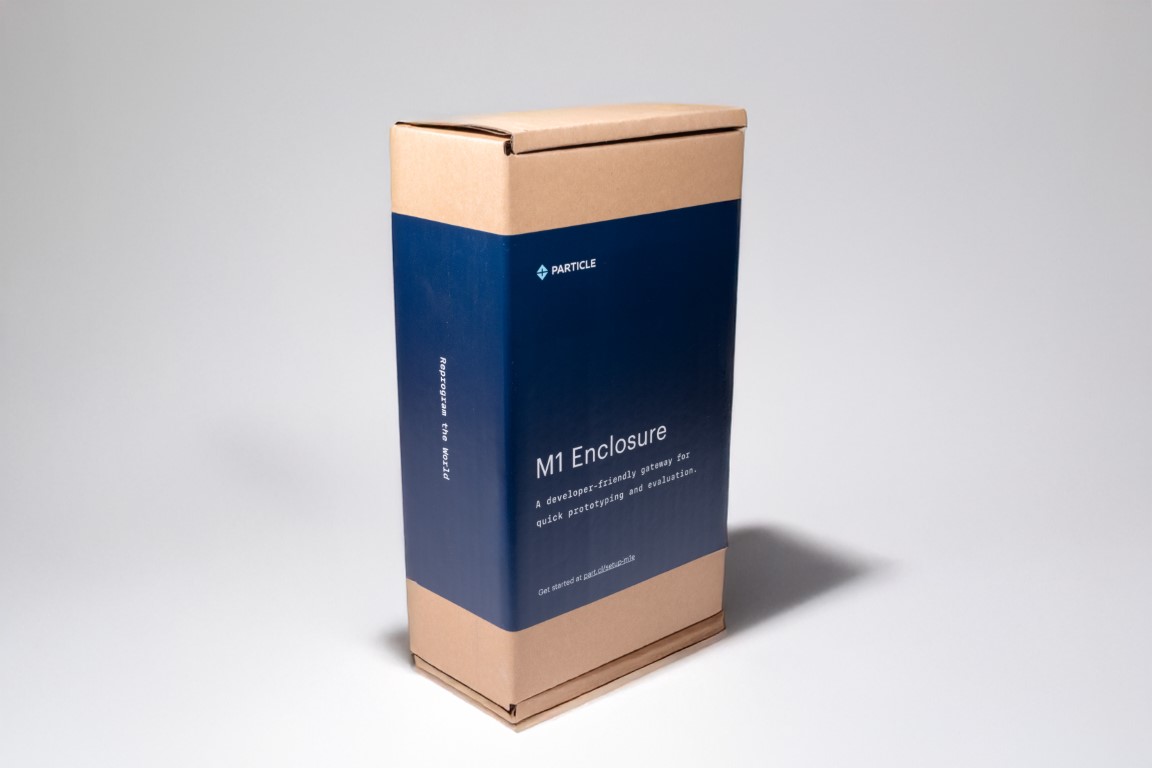

M1 Enclosure Unboxing

What's Included?​

  • M1 Enclosure (White with Dark Blue Accents)
  • Carrier Board (for Raspberry Pi-compatible boards)
  • 2x M20 Cable Glands (with TE RJ45 feed-through)
  • 2x M20 Hole Plugs
  • Back Mounting Plate
  • M3 & M2 Hex Tools
  • Mounting Hardware (screws, bolts, etc.)
  • USB-C Cable

Note: Muon, Tachyon, or Raspberry Pi boards are not included. Antennas and batteries are sold separately.

Unboxing Video​

YES! Its an unboxing video. Enjoy!

Connectivity & Antennas​

Cellular, GNSS, Wi-Fi, and LoRa Support​

The M1 Enclosure supports multiple antenna configurations, including:

  • Cellular Antennas → Mounted on the lid, connected to Muon’s U.FL connector.
  • GNSS Antennas → Installed near the front status LED.
  • Wi-Fi & BLE Antennas → Mounted internally, near the carrier board.
  • LoRa Antennas → Can use one of the bulkhead SMA connectors.

Antenna installation and placement recommendations are detailed in the datasheet.

Mounting Options​

The M1 Enclosure offers a versatile mounting plate, identical to the Monitor One, featuring:

  • Screw/Bolt Mounting → Secure the plate with M4 or #8 screws.
  • Strap Mounting → Use 15mm straps for flexible mounting.
  • Magnetic Mounting → Integrated magnets allow quick attachment to metal surfaces.

Mounting Dimensions​

MeasurementMetricImperial
Top Mounting Hole Width28 mm1 3/32"
Bottom Mounting Hole Width46 mm1 13/16"
Height Between Mounting Holes140 mm5 1/2"
