Welcome to Monitor One Developer Docs

The Particle Monitor One is an IP67-rated, off-the-shelf gateway built for industrial monitoring and remote asset visibility. Designed to bridge the gap between rugged hardware and flexible customization, it ships as a complete system ready to connect sensors, machines, and infrastructure with reliable cellular, GNSS, and local I/O interfaces. Whether you're doing rapid prototyping or deploying in harsh field conditions, Monitor One is engineered to simplify setup, scale securely, and deliver actionable data.

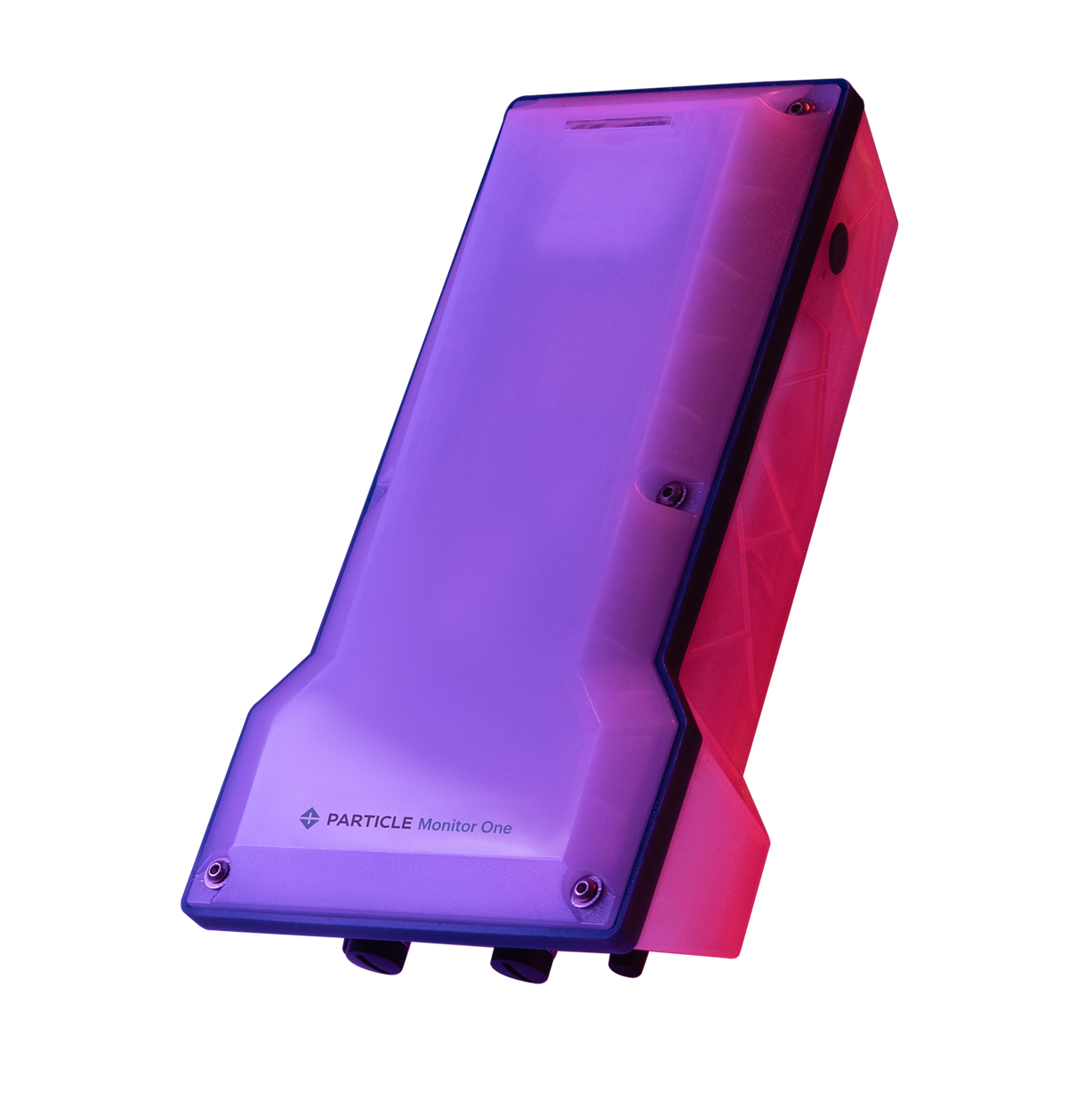

Monitor One Hero

Overview​

Monitor One includes the Tracker SoM internally, placed in a larger enclosure with space for expansion. It supports internal or external antennas for GNSS and cellular, has on-board lithium battery backup, multiple temperature sensors, and provides connectivity over standard industrial interfaces (like CAN, RS-485, 4-20 mA, 0-10 V). It’s equipped with rugged M12 connectors, external expansion card headers, and mounting options for bolting, strapping, or magnetic attachment. The device is made to operate from 6-30 V DC, with power via VIN or USB, and can be deployed virtually anywhere.

Out of the box, Monitor One includes a reference firmware and Quickstart guide to get your first data streaming in minutes. For custom hardware, you can leverage its expansion capabilities and open firmware.

Key Features​

  • Rugged IP67 enclosure with flexible mounting (bolts, straps, magnets) and room for an expansion card.
  • Flexible power input: 6-30 V DC VIN, onboard LiPo battery backup, and external or internal antenna options.
  • Multiple industrial I/O interfaces via I/O Card: CAN bus, Modbus/RS-485, 4-20 mA input, 0-10 V input, 12-24 V slow-signal inputs, relay outputs.
  • Built-in environmental sensing: Board temperature sensors + battery temperature sensor.
  • User interface & indicators: System RGB LED, two external user RGB LEDs, waterproof user button, and visible indicators of GNSS status.
  • Internal or external antennas (cellular, GNSS) with SMA and U.FL connectors; external option requires case opening.
  • Expansion card support: Enables extra connectors and custom PCBs for application-specific expansion. Provides bottom plate M12 connectors plus flying leads.
  • Carrier and firmware integration: Includes SoM with cellular modem, GNSS, WiFi geolocation options, reference firmware, Particle cloud integration and tools.
